kudos to matt kuebrich for his excellent roundabout diy synth project

i recommend building one, it's a lot of fun, and good soldering practice...

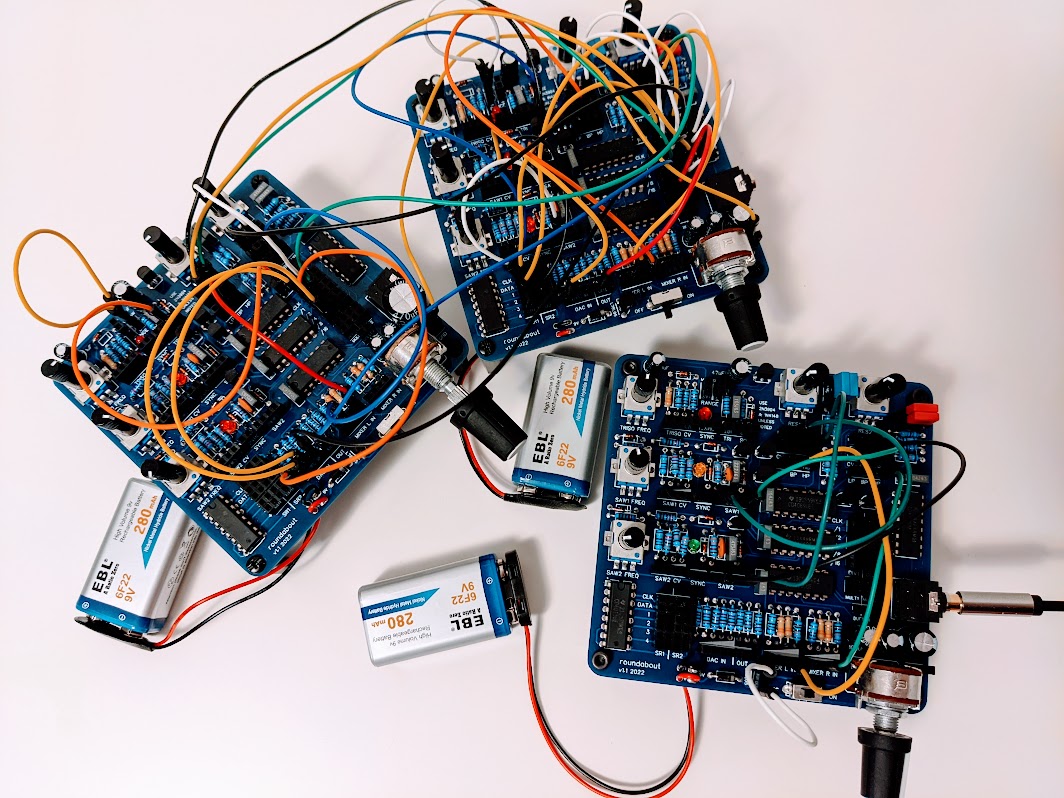

i built three of these, so when i realised the dimensions were almost exactly right for AE modular, i decided to hack one apart to host it in my rack.

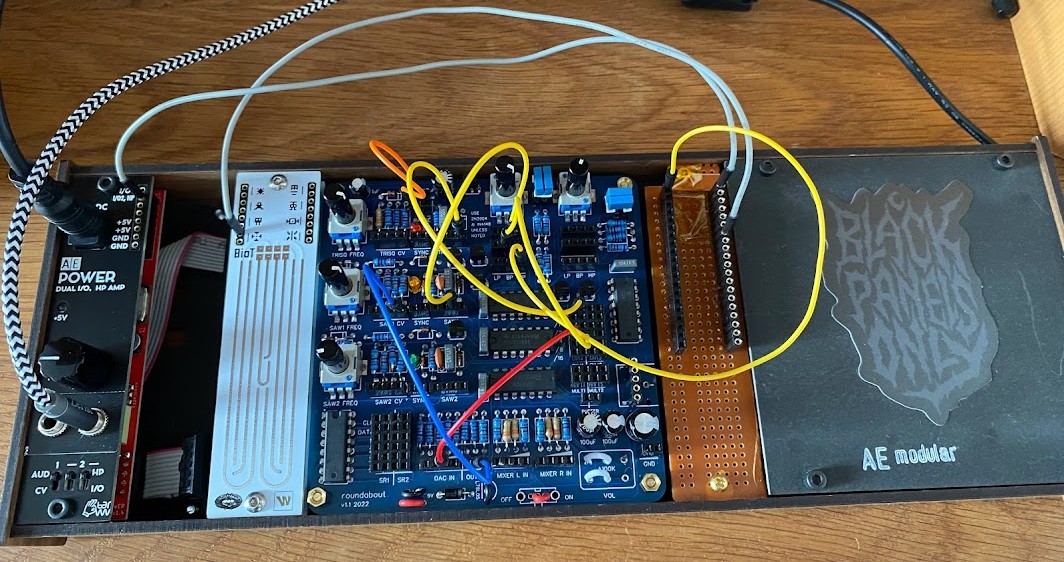

there were just a few adjustments required:

• solder the + and - connections to a 5x2 pin header to connect with the AE bus cable
• remove the 5v regulator which normally reduces the 9v from battery. AE runs on 5v anyway so this isn't required
• remove the volume pot, and the 3.5mm jack out
• remove the power slider and bridge the connection so it's permanently 'on'
• drill a few extra holes in the bottom of the rack case to accommodate the positioning of the legs

i think the diode could also be removed - this is causing the voltage to drop slightly below 5v, so probably impacting the sound somewhat. however, i haven't tried this yet.

standard dupont cables don't interface very well with the AE pin sockets (in fact, the socket can be damaged by them), so i made a very simple little dupont-to-AE converter by taking one of each type of connector and soldering them together. not pretty, but it works.

decided this needed a frontpanel. thanks to matt for providing the original easyEDA files to reference for the dimensions. i haven't tried this out yet, but will throw a few in my next JLCPCB order. if it fits ok i'll include the gerber on my github page.
