diy bluetooth midi module

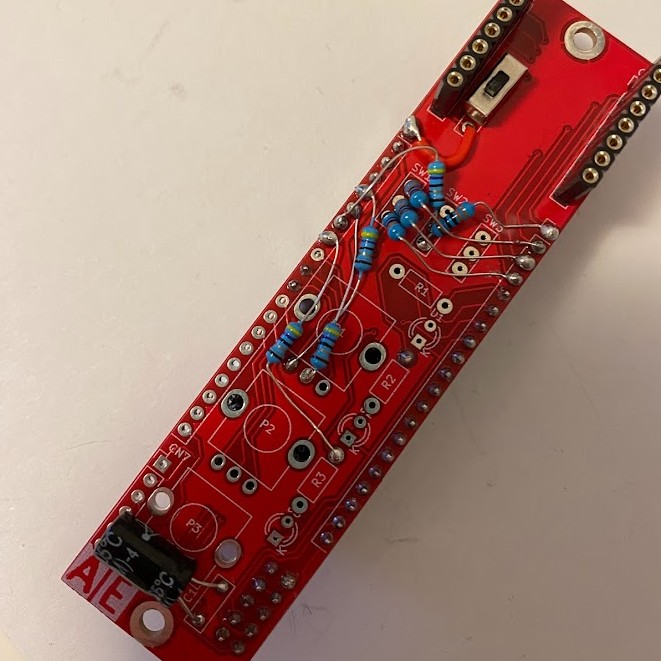

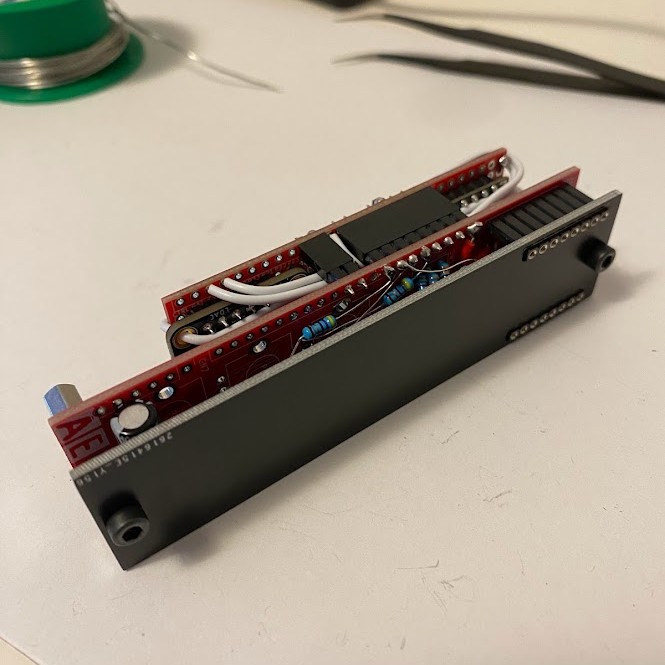

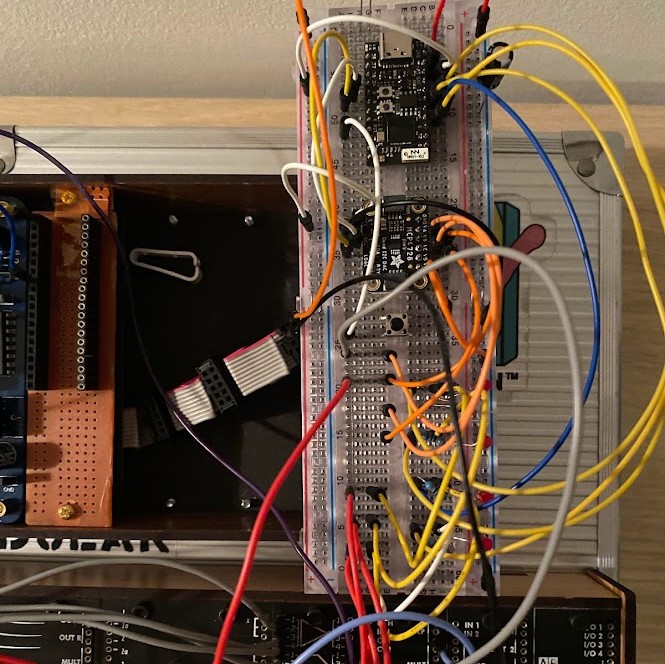

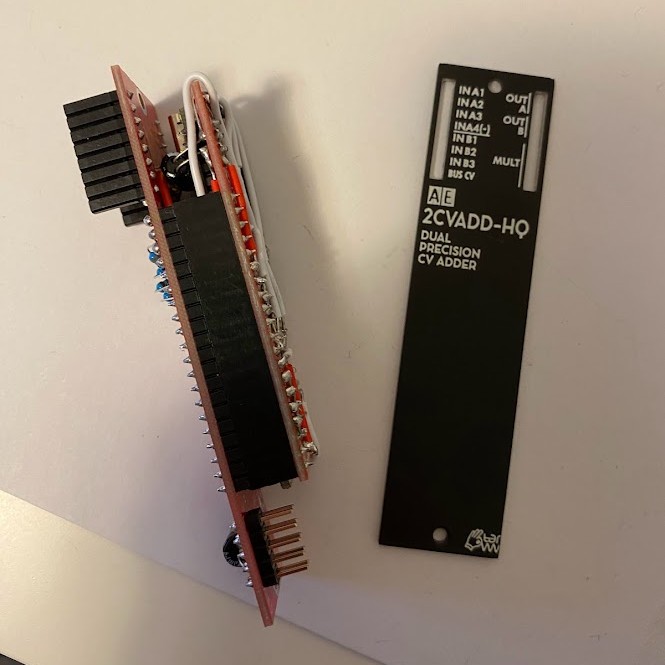

this was a personal project utilising the official Tangible Waves diy kit. i wanted to build a simple module capable of receiving 4 channels of midi over bluetooth, and outputting 4x gates and 4x cv.

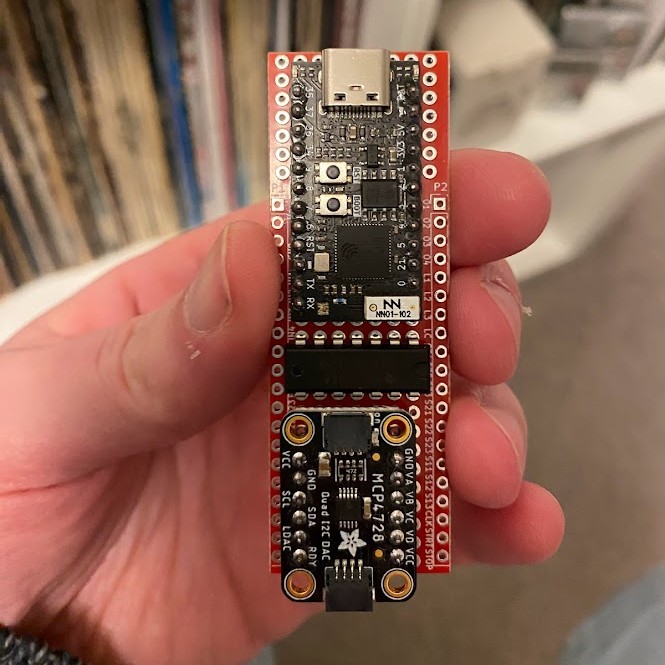

i discovered the TinyS3 mcu and realised it had the required capabilities in a very small form factor.

to get accurate cv i paired it with this i2c quad DAC from adafruit: https://learn.adafruit.com/adafruit-mcp4728-i2c-quad-dac

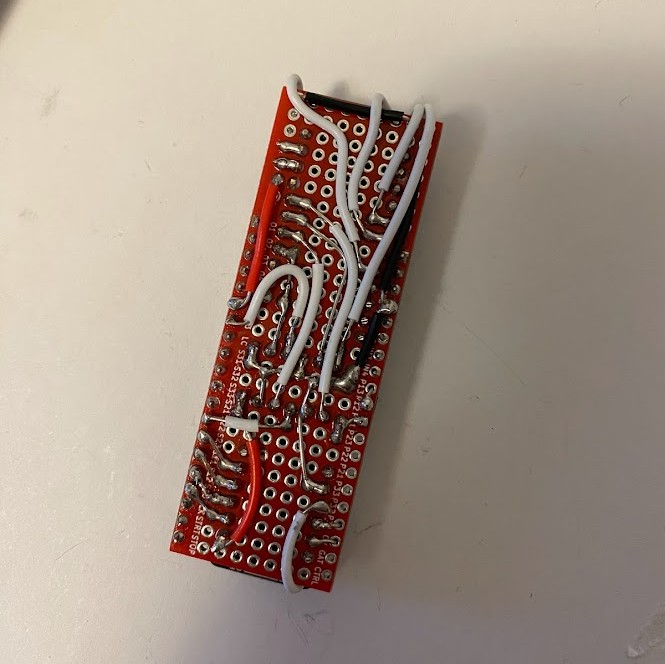

and to raise the gate voltages from 3.3v to 5v i just about squeezed in this quad level-shifter.

the ultimate goal was to send multiple channels of midi from software such as the fantastic orca by hundredrabbits and also the multitude of interesting ipad sequencers out there.

further details and arduino code on github: https://github.com/fauxcyrillic/BTLE-MIDI-2-CV
